06CCT


06CCT-T0



THREE-PHASE METER BOX


APPLICATIONS:
Exterior recessed box, semi-recessed or surface mounting for three-phase meter.

MATERIALS:
Box, cover and mounting plate in polyester reinforced with fibreglass self-extinguishing gray RAL 7035.
Sealing screws in polycarbonate V2 gray RAL 7035.
Transparent anti-UV V2 polycarbonate display.
Display protector in ABS gray RAL 7035.
Black polyurethane sealant.
06CCT - Cover in polycarbonate.

APPLICABLE STANDARDS:
EN 62208

CHARACTERISTICS:
06CCT - IP65 IK08
06CCT-TO - IP54 IK08
Insulation voltage: 600V
Insulation category: Category II
Temperature range supported by the housing: -25ºC to +60ºC.
Thermal dissipation capacity: 30W

ASSEMBLY INSTRUCTIONS:
For integrated assembly or surface mounting, after the process of construction of the assembly surfaces.
This product was developed for the application of a three-phase meter so they must be assembled on the assembly plate supplied.
The maximum weight of the equipment inside the box must not exceed 280 kg/m2.
When cables are passed through the lower wall, orifices must be made at the bottom of the box.
For surface mounting screws should be chosen according to the weight of the equipment to be used.
No heavy items must be placed on the box lid.




Sort By:   Then Sort By:


Reference Naming
Quantity

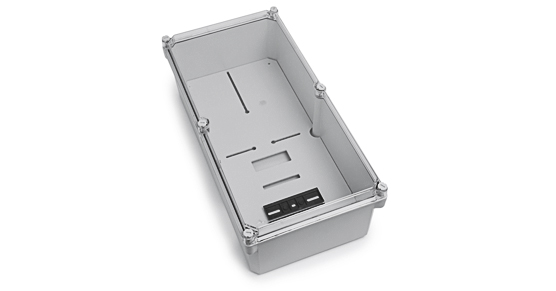

06CCT Three-phase meter box
1
Item code
Weight 3.5 lbs
Product Information

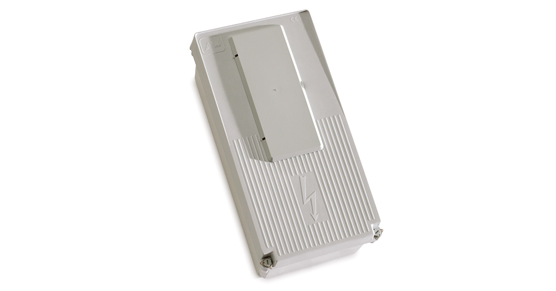

06CCT-TO Three-phase meter box opaque cover
1
Item code
Weight 4.3 lbs
Product Information



14CCT-T Cover for CCT box
1
Item code
Product Information



14CCT-TO-T Cover for CCTO box
1
Item code
Weight 1.5 lbs
Product Information



16CAACE Accessory Set to clamp electricity meter
100
Item code
Product Information



16CCT-CHASSIS Chassis for CCT
1
Item code
Product Information



16CD35X75X115 Rail DIN 35x7.5x115
1
Item code
Product Information







DECLARATION OF CONFORMITY

CE78-1 06CCT. 06CCT-TO
