FUSE HOLDER BASES BUC NH


APPLICATIONS:
Single-pole bases for fuse NH.
Used for protection and cut-off of energy distribution lines, industrial facilities, etc

MATERIALS:
Base and lid made of grey self-extinguishing polyamide 6 without halogens, RAL 7035.
Protector made of red polyamide 6, RAL 3001.
Fuse base made of tinned copper.

APPLICABLE STANDARDS:
EN 60269-1
EN 60947-3

CHARACTERISTICS:
Fuses size NH00, NH1 and NH2, between 0 and 400 Amp.
Electric arc extinguishing chamber.
LED fusion indicator for identifying the state of the fuse.
Opening and closing of the fuse being charged, with no danger for the user.
Tilting crank on two shafts for accurate insertion of the fuse.
Extractable crank.
Upper and lower ventilation system.
Orifice for measuring voltage at both ends.
IP43 IK10.
Insulation voltage: 1000V
thermal dissipation capacity: 23 to 75W
Insulation voltage: 500V



Sort By:   Then Sort By:


Reference Naming
Quantity

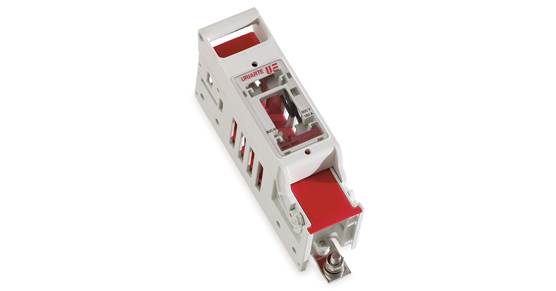

3923BUC00-B Fuse holder NH size 00 connections underneath
1
Item code
Product Information



3923BUC00-CB Fuse holder NH size 00 connections underneath/above
1
Item code
Product Information

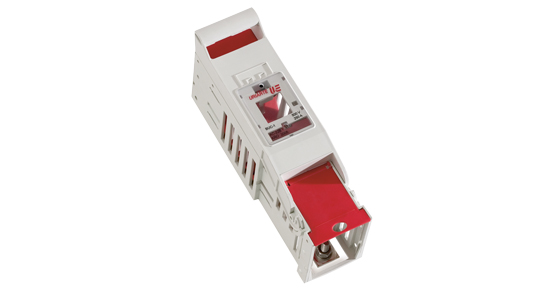

3923BUC1-B Fuse holder NH size 1 connections underneath
1
Item code
Product Information



3923BUC1-BD Fuse holder NH size 1 connections rightside underneath
1
Item code
Product Information



3923BUC1-CB Fuse holder NH size 1 connections underneath/above
1
Item code
Product Information



3923BUC2-B Fuse holder NH size 2 connections underneath
1
Item code
Product Information



3923BUC2-BD Fuse holder NH size 2 connections rightside underneath
1
Item code
Product Information



3923BUC2-CB Fuse holder NH size 2 connections underneath/above
1
Item code
Product Information
