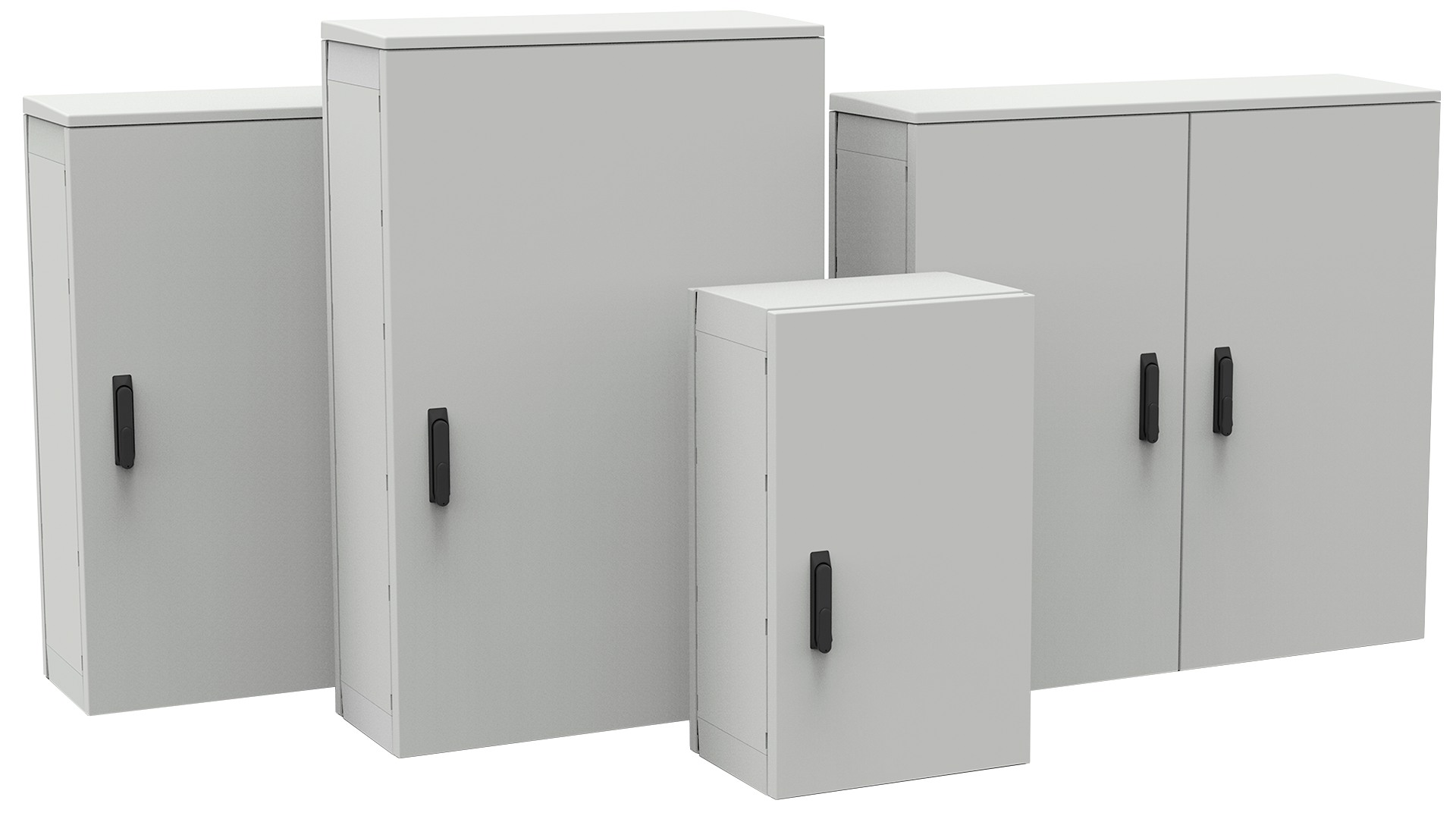

RANGE IP65 IK10
APPLICATIONS:
Cabinets used in all types of private or public telecommunications, electricity, water, gas, traffic lights and other industries.
MATERIALS:
Made from unsaturated polyester reinforced with fiberglass and self-extinguishing additives RAL 7035.
APPLICABLE STANDARDS:
IEC 62208
CHARACTERISTICS:
IP65 IK10
Adjustable to equipment on a mounting plate or rack.
Door opening: 130º/180º.
Ambient temperature from -25ºC a +40ºC.

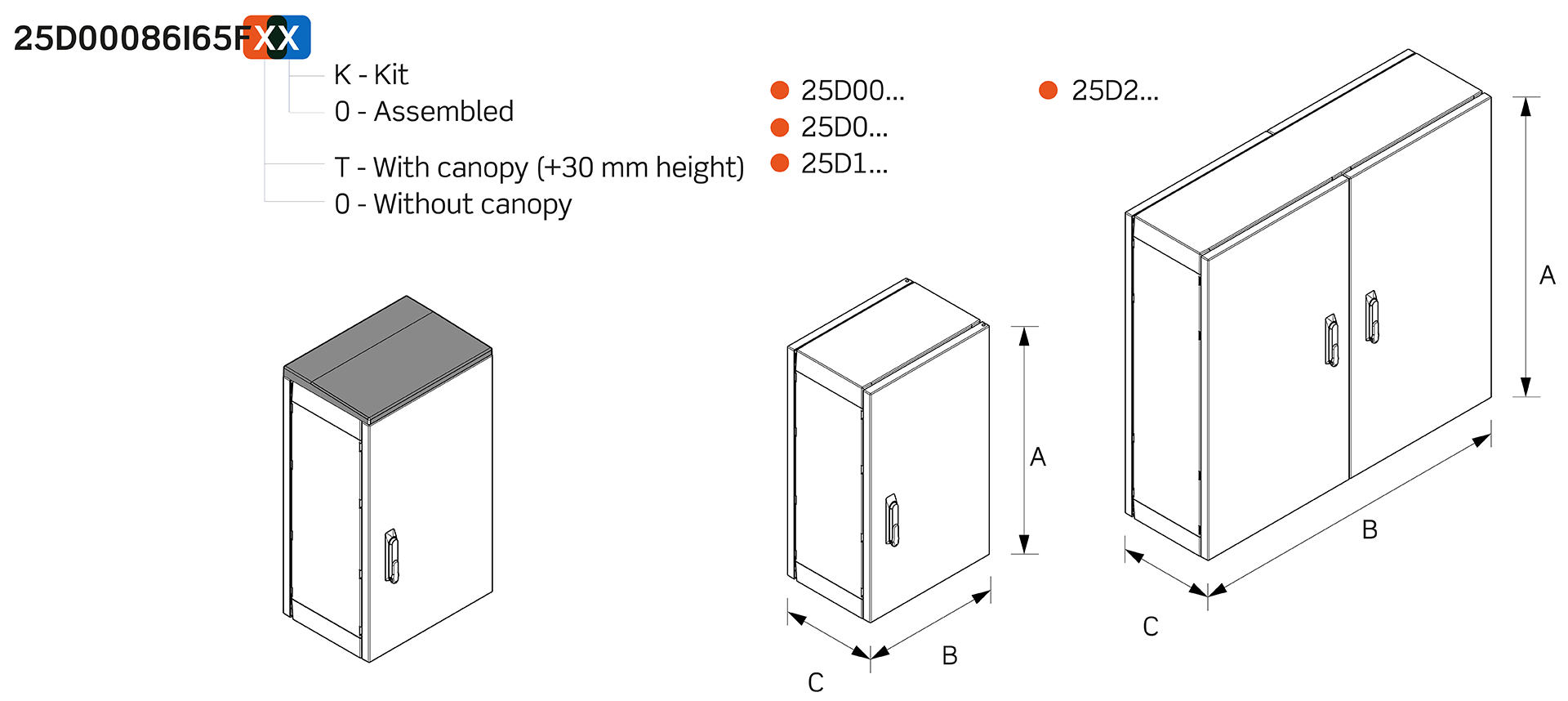

Various measurements.
Various accessories.
Thermal dissipation: check page 2 of the URCAB catalog.
ASSEMBLY INSTRUCTIONS:
Interior or exterior application, surface, integrated or semi-integrated assembly.
Ground or base fixing.
The maximum weight of the equipment inside the cabinet should not exceed 280 kg/m³.
No load should be applied on the door.
